94 Ghibli 2.8 Needed!! Passenger footwell electronics pictures

As the title states, I am in need of pictures from any of the Ghibli II (AM336 or export AM574) model.

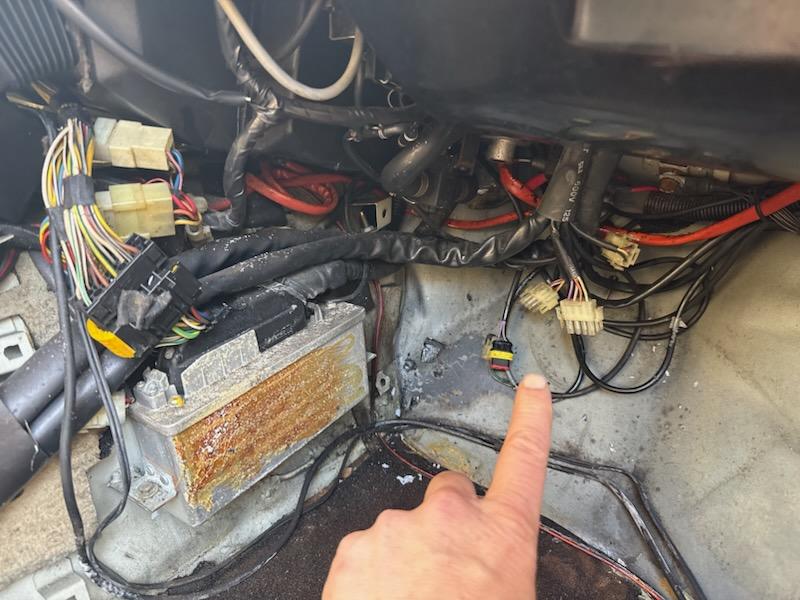

I have some mystery wires and connections that have been collected and ziptied under my dash storage compartment that I just cannot identify.

I have all the Maserati mechanical manuals… I simply cannot identify what is possibly missing. Notably, the plugs have an orange wire in them; nothing in my wire diagrams shows an orange wire in a wire plug configuration… Let alone two connectors. Then there is a 2-wire connector with a Grey Wire with a black stripe and a green wire with a Black stripe that goes into the motor loom and exits near the left-hand harness with the injectors. A third connector has 2 violet wires and a black ground.

None of these connections are listed in my manuals or wire diagrams. This mine is an AM574 Japan export model.

Is there a headlight leveling module? The AM574 has different headlamp housings that don’t use leveling, and there is a harness with similar wires, but with 5 wires…

Also, if anyone knows a good place that can scan architectural drawings ARCH-E size documents in the midlands area, I can get my Maserati factory manuals scanned for sharing. These things are about 36 inches by 48 inches.
